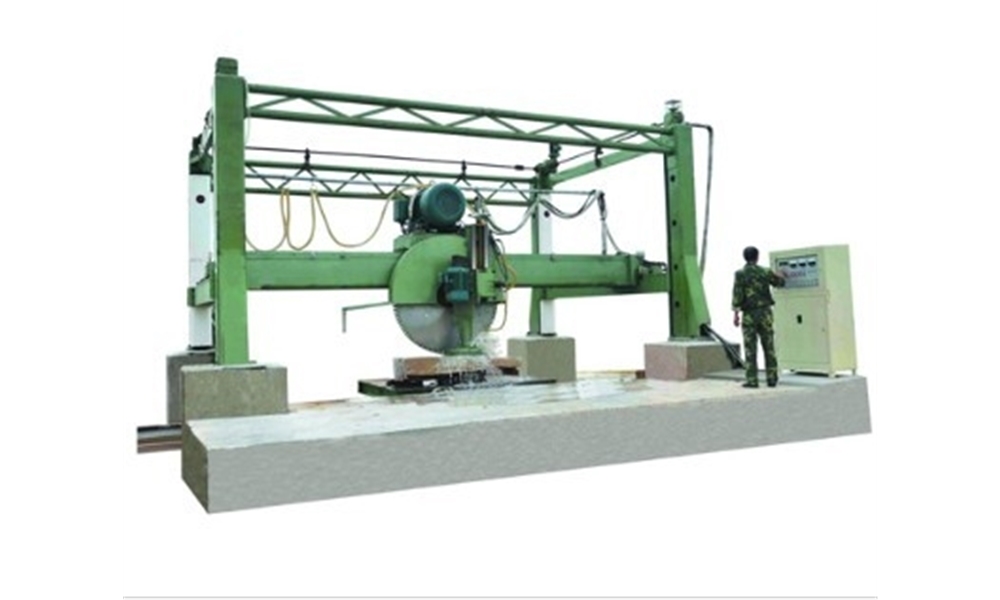

Name：DPJ3500 Two-Way Cutting Machine
Details
The machine is the main engine of marble sheet production line. The machine cuts rough marble materials into panels of certain thickness and specification with the use of programmable full-automatic electrical control system and hydraulic transmission.| Max. size of block (L×W×H) | 3500×2200×2200mm |
| Thickness of slab | 8～80mm |
| Width of slabs | 600mm |
| Dia. of vertical blade | Φ900～Φ1600mm |
| Dia. of horizontal blade | Φ400～Φ600mm |
| Cutting speed | 0～8000mm/min |
| Elevating speed of bridge stand | 180mm/min |
| Size of truck(L×W) | 2500×2100mm |
| Overall dimensions (L×W×H) | 7100×5500×5160mm |
| Total power | 117KW |
| Total weight | about18000kg |
|
